Sale!

KIPP K0317.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STEEL, COMP:PIN STEEL, PU=10 Supply

Original price was: $8.01.Current price is: $3.20.

SKU: US-8765594697933 Categories: , Tag:

Description

KIPP K0317.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STEEL, COMP:PIN STEEL, PU=10
KIPP K0317.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=28, STEEL, COMP:PIN STEEL, PU=10
Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, inch

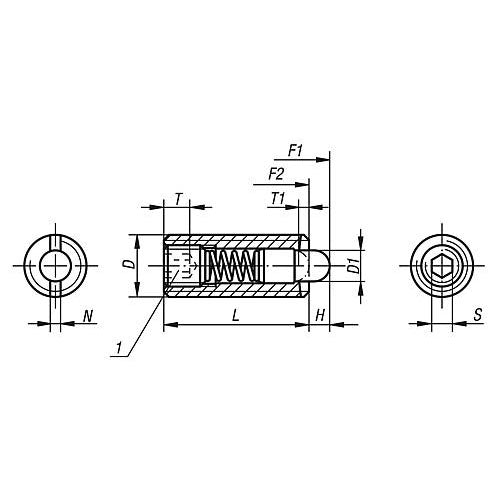

Material: body steel grade 5.8. Thrust pin steel. Spring steel wire grade D. Type: Black oxidized. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Steel
Item: Spring Plunger
Packaging Unit: 10
D: 1/2-13
D1: 6
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 12
Spring Force Final Pressure F2 Approx. N: 55
H: 4
L: 28
N: 2
S: 5/32
T: 5
T1: 2
