KIPP K0319.A2 SPRING PLUNGER STANDARD SPRING FORCE D=1/4-20 L=20, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10 Sale

Original price was: $9.26.Current price is: $3.70.

SKU: US-8765596893389 Categories: , Tag:

Description

KIPP K0319.A2 SPRING PLUNGER STANDARD SPRING FORCE D=1/4-20 L=20, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
KIPP K0319.A2 SPRING PLUNGER STANDARD SPRING FORCE D=1/4-20 L=20, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, inch

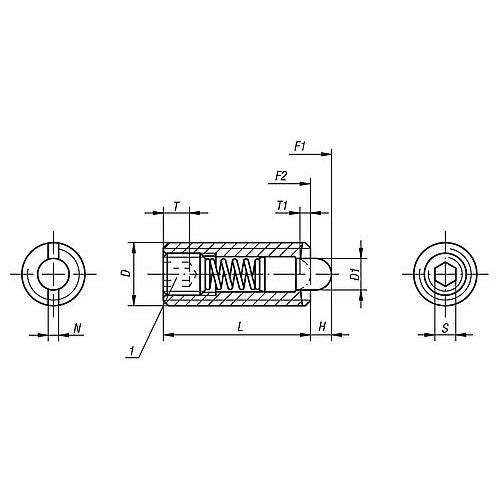

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 10
D: 1/4-20
D1: 2.7
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 6
Spring Force Final Pressure F2 Approx. N: 17
H: 2.5
L: 20
N: 1
S: 5/64
T: 2.5
T1: 1
