Sale!

KIPP K0319.A3 SPRING PLUNGER STANDARD SPRING FORCE D=5/16-18 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10 on Sale

Original price was: $10.55.Current price is: $4.22.

SKU: US-8765596958925 Categories: , Tag:

Description

KIPP K0319.A3 SPRING PLUNGER STANDARD SPRING FORCE D=5/16-18 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
KIPP K0319.A3 SPRING PLUNGER STANDARD SPRING FORCE D=5/16-18 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, inch

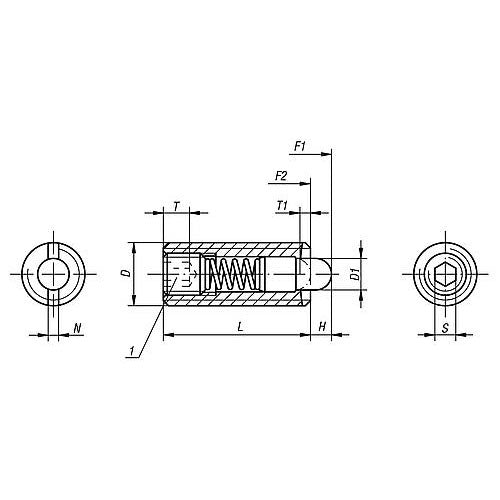

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 10
D: 5/16-18
D1: 3.5
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 7
Spring Force Final Pressure F2 Approx. N: 29
H: 3
L: 22
N: 1.2
S: 3/32
T: 3
T1: 1.4
