KIPP K0319.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5 on Sale

Original price was: $12.34.Current price is: $4.94.

SKU: US-8765596991693 Categories: , Tag:

Description

KIPP K0319.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
KIPP K0319.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, inch

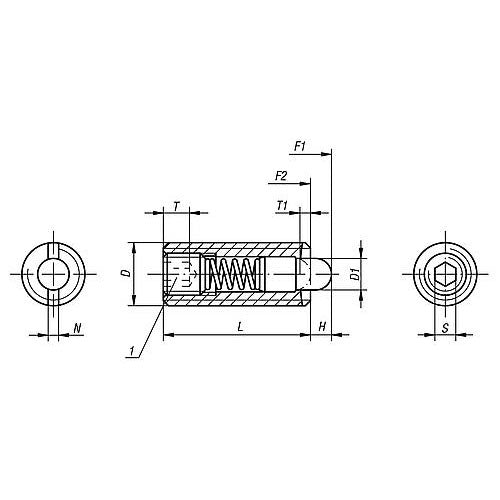

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in

Main Material: Stainless Steel
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 5
D: 3/8-16
D1: 4
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 8
Spring Force Final Pressure F2 Approx. N: 31
H: 3
L: 22
N: 1.6
S: 1/8
T: 3.5
T1: 1.4
