KIPP K0321.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STEEL, COMP:BALL STEEL, PU=10 Sale

Original price was: $2.86.Current price is: $1.14.

SKU: US-8765599154381 Categories: , Tag:

Description

KIPP K0321.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STEEL, COMP:BALL STEEL, PU=10
KIPP K0321.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STEEL, COMP:BALL STEEL, PU=10
Spring Plungers with thread lock ball style, slotted, steel, heavy end pressure, inch

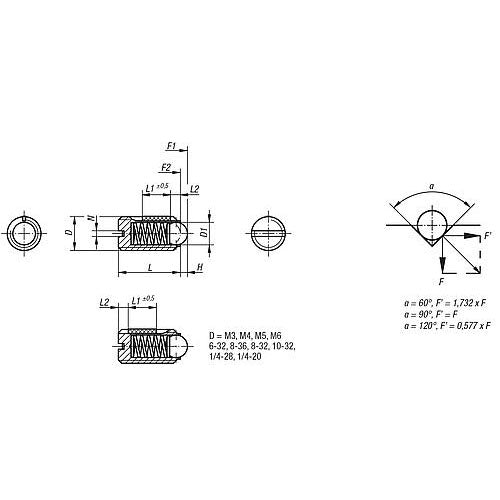

Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Ball hardened. Part Number Example: K0321.AD Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.08
D: 10-32
D1: 3
Tightening Torque Approx. Nm: 0.12
Spring Strength: Intensified
Spring Force Initial Pressure F1 Approx. N: 19
Spring Force Final Pressure F2 Approx. N: 30
H: 0.9
L: 12
L1: 6
N: 0.8
