KIPP K0322.203 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M03 L=7, STAINLESS STEEL, COMP:BALL STAINLESS Discount

Original price was: $7.32.Current price is: $2.93.

SKU: US-8765599940813 Categories: , Tag:

Description

KIPP K0322.203 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M03 L=7, STAINLESS STEEL, COMP:BALL STAINLESS
KIPP K0322.203 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M03 L=7, STAINLESS STEEL, COMP:BALL STAINLESS
Spring Plungers with thread lock ball style, slotted, stainless steel, heavy end pressure, metric

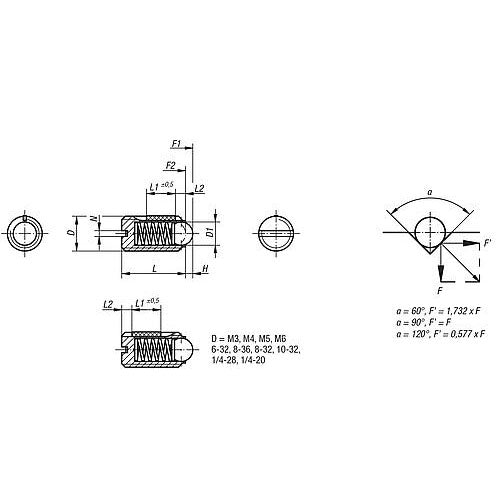

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.07
D: M3
D1: 1.5
Tightening Torque Approx. Nm: 0.1
Spring Strength: Intensified
Spring Force Initial Pressure F1 Approx. N: 5
Spring Force Final Pressure F2 Approx. N: 7
H: 0.4
L: 7
L1: 4
N: 0.4
