Sale!

KIPP K0322.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STAINLESS STEEL, COMP:BALL STAINLESS Online now

Original price was: $6.45.Current price is: $2.58.

SKU: US-8765600334029 Categories: , Tag:

Description

KIPP K0322.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STAINLESS STEEL, COMP:BALL STAINLESS
KIPP K0322.2A1 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=10-32 L=12, STAINLESS STEEL, COMP:BALL STAINLESS
Spring Plungers with thread lock ball style, slotted, stainless steel, heavy end pressure, inch

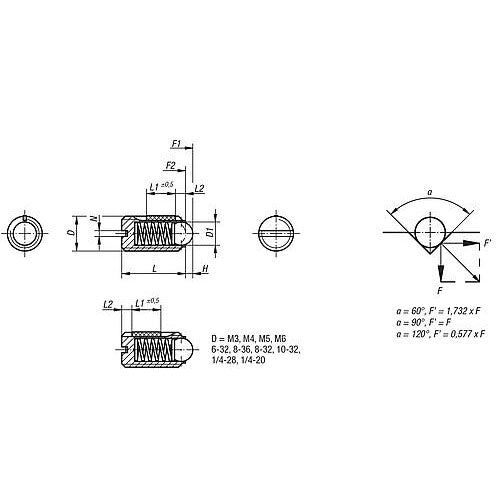

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.08
D: 10-32
D1: 3
Tightening Torque Approx. Nm: 0.12
Spring Strength: Intensified
Spring Force Initial Pressure F1 Approx. N: 19
Spring Force Final Pressure F2 Approx. N: 30
H: 0.9
L: 12
L1: 6
N: 0.8
