KIPP K0323.1AJ SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=14, STEEL, COMP:PIN STEEL, PU=10 Online Hot Sale

Original price was: $3.66.Current price is: $1.46.

SKU: US-8765601317069 Categories: , Tag:

Description

KIPP K0323.1AJ SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=14, STEEL, COMP:PIN STEEL, PU=10
KIPP K0323.1AJ SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=14, STEEL, COMP:PIN STEEL, PU=10
Spring Plungers with thread lock, pin style, slotted, steel, light end pressure, inch

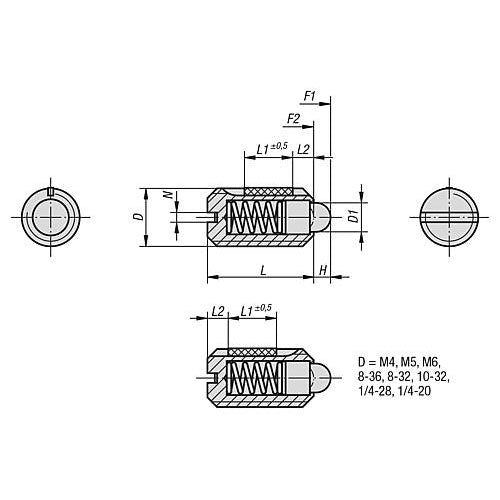

Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0323.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.21
D: 1/4-28
D1: 2.7
Tightening Torque Approx. Nm: 0.44
Spring Strength: Light
Spring Force Initial Pressure F1 Approx. N: 3
Spring Force Final Pressure F2 Approx. N: 9
H: 2
L: 14
L1: 7
N: 1
