Sale!

KIPP K0324.A2 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/4-20 L=14, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10 Supply

Original price was: $5.59.Current price is: $2.24.

SKU: US-8765602726093 Categories: , Tag:

Description

KIPP K0324.A2 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/4-20 L=14, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
KIPP K0324.A2 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/4-20 L=14, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
Spring Plungers with thread lock, pin style, slotted, stainless steel, standard end pressure, inch

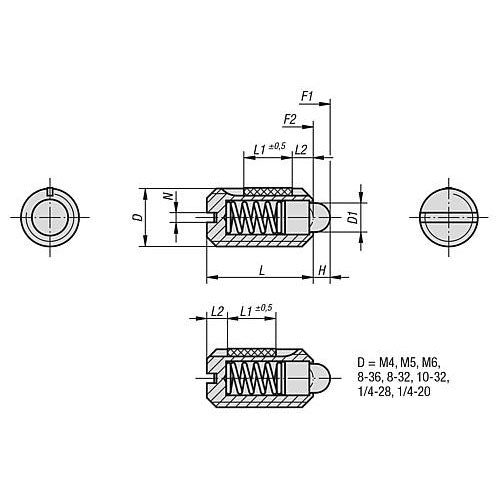

Material: Type: Bright. Thrust pin hardened. Part Number Example: K0324.A3 Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch

Main Material: Stainless Steel
Version 1: With Thread Lock
Item: Spring Plunger
Packaging Unit: 10
Pin Style: Thrust Pin
Carrier Style: Slot
Loosening Torque Approx. Nm: 0.21
D: 1/4-20
D1: 2.7
Tightening Torque Approx. Nm: 0.44
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 7
Spring Force Final Pressure F2 Approx. N: 20
H: 2
L: 14
L1: 7
N: 1
