KIPP K0583.50 DOUBLE BALL CATCH, L=49, B=8,8, H=10,6, A=40, BRASS CHROMED, COMP:BALL STAINLESS STEEL Fashion

Original price was: $5.69.Current price is: $2.28.

SKU: US-8765652271309 Categories: , Tag:

Description

KIPP K0583.50 DOUBLE BALL CATCH, L=49, B=8,8, H=10,6, A=40, BRASS CHROMED, COMP:BALL STAINLESS STEEL
KIPP K0583.50 DOUBLE BALL CATCH, L=49, B=8,8, H=10,6, A=40, BRASS CHROMED, COMP:BALL STAINLESS STEEL
Double ball catches

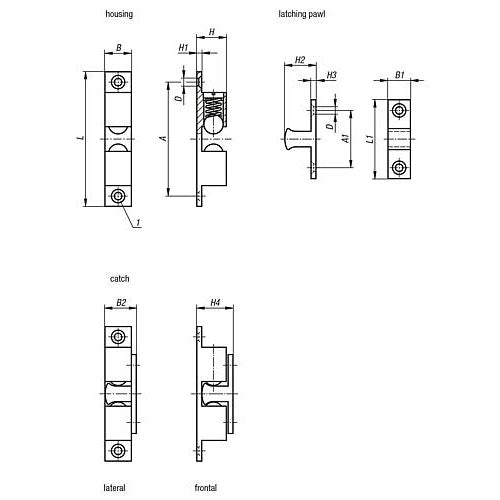

Material: Type: Brass and die-cast zinc chromed. Stainless steel abrasive blasted. Balls and springs bright stainless steel. Part Number Example: K0583.50 Note: Quick catch for various applications such as holding doors, hatches, screens etc. closed. The double ball catch consists of a housing and a latch bracket that engages between the two balls. The latch bracket can engage from the front or the side. The engagement pressure is adjustable. Drawing reference: 1) counterbore DIN 74-A

Main Material: Brass
Item: Double Ball Catch
Rohs: Yes
A: 40
A1: 20
B: 8.8
B1: 7.9
B2: 10.8
D: 3.8
Spring Strength: Standard
H: 10.6
H1: 2
H2: 11.2
H3: 2
H4: 13
Clamping Force Ca. N: 35±5
L: 49
L1: 29.5
