KIPP K0583.70 DOUBLE BALL CATCH, L=68,4, B=13, H=15, A=58, BRASS CHROMED, COMP:BALL STAINLESS STEEL Sale

Original price was: $12.66.Current price is: $5.06.

SKU: US-8765652467917 Categories: , Tag:

Description

KIPP K0583.70 DOUBLE BALL CATCH, L=68,4, B=13, H=15, A=58, BRASS CHROMED, COMP:BALL STAINLESS STEEL
KIPP K0583.70 DOUBLE BALL CATCH, L=68,4, B=13, H=15, A=58, BRASS CHROMED, COMP:BALL STAINLESS STEEL
Double ball catches

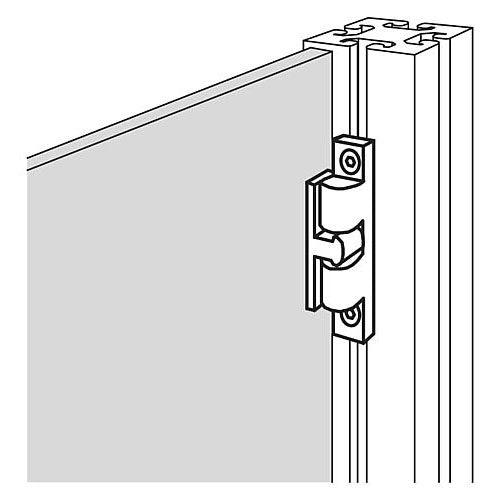

Material: Type: Brass and die-cast zinc chromed. Stainless steel abrasive blasted. Balls and springs bright stainless steel. Part Number Example: K0583.50 Note: Quick catch for various applications such as holding doors, hatches, screens etc. closed. The double ball catch consists of a housing and a latch bracket that engages between the two balls. The latch bracket can engage from the front or the side. The engagement pressure is adjustable. Drawing reference: 1) counterbore DIN 74-A

Main Material: Brass
Item: Double Ball Catch
Rohs: Yes
A: 58
A1: 30
B: 13
B1: 12
B2: 16
D: 4.8
Spring Strength: Standard
H: 15
H1: 2.4
H2: 15.7
H3: 2.2
H4: 18.5
Clamping Force Ca. N: 25±5
L: 68.4
L1: 40
