KIPP K0583.700 DOUBLE BALL CATCH, L=70, B=13, H=17, A=60, ZINC CHROMED, COMP:BALL STAINLESS STEEL Online Sale

Original price was: $6.40.Current price is: $2.56.

SKU: US-8765652500685 Categories: ,

Description

KIPP K0583.700 DOUBLE BALL CATCH, L=70, B=13, H=17, A=60, ZINC CHROMED, COMP:BALL STAINLESS STEEL
KIPP K0583.700 DOUBLE BALL CATCH, L=70, B=13, H=17, A=60, ZINC CHROMED, COMP:BALL STAINLESS STEEL
Double ball catches

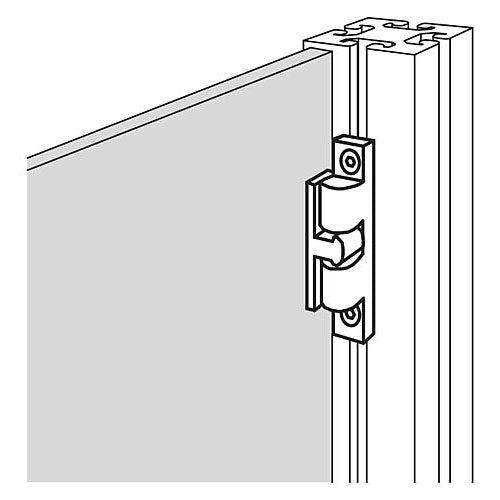

Material: Type: Brass and die-cast zinc chromed. Stainless steel abrasive blasted. Balls and springs bright stainless steel. Part Number Example: K0583.50 Note: Quick catch for various applications such as holding doors, hatches, screens etc. closed. The double ball catch consists of a housing and a latch bracket that engages between the two balls. The latch bracket can engage from the front or the side. The engagement pressure is adjustable. Drawing reference: 1) counterbore DIN 74-A

Main Material: Zinc
Item: Double Ball Catch
Rohs: Yes
A: 60
A1: 30
B: 13
B1: 10.5
B2: 17
D: 4.2
Spring Strength: Standard
H: 17
H1: 4
H2: 19
H3: 4
H4: 23
Clamping Force Ca. N: 38
L: 70
L1: 42
