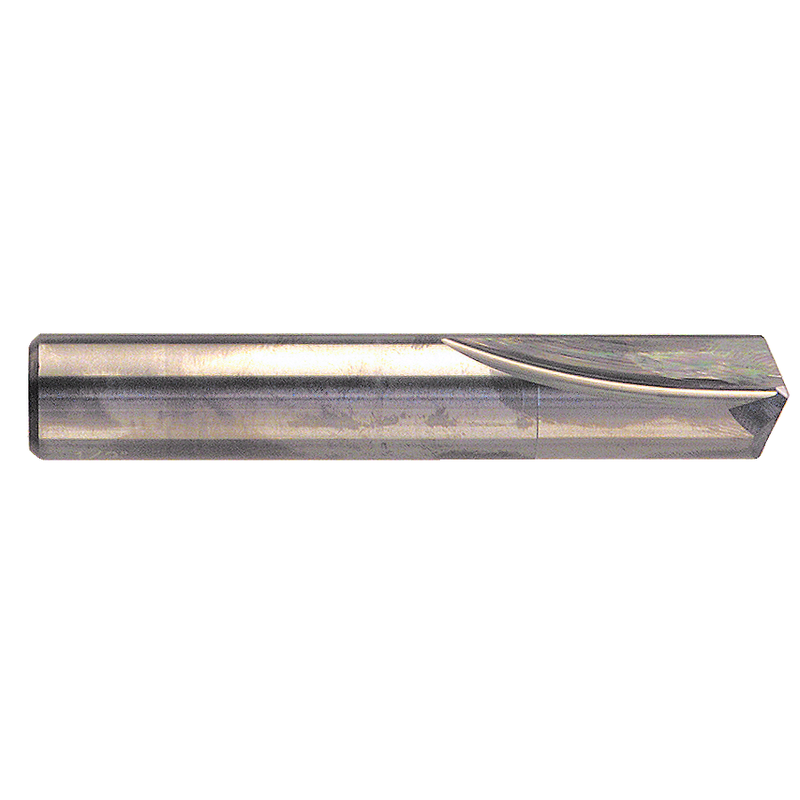

M A Ford AX3020403 7/32" Dia. x 7/32" Shank x 3/4" Flute Length x 2" OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill Discount
$34.99Original price was: $34.99.$14.00Current price is: $14.00.
M A Ford AX3020403 7/32" Dia. x 7/32" Shank x 3/4" Flute Length x 2" OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Short Description
M A Ford 20021870 7/32″ Dia. x 7/32″ Shank x 3/4″ Flute Length x 2″ OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Full Description
Drill Bit Size / Cutting Diameter (DC)
7/32″
Shape
Screw Machine
Drill Bit Size / Cutting Diameter (DC) – Inch
7/32″
Cutting Edge Material
Carbide
Decimal Equivalent
0.2188″
Tool Type
Screw Machine
Length Group
3XD
Point Shape
Point
Coating
Uncoated
Measurement Type
Inch
Connection Diameter Machine Side (DCONMS)
7/32″
Usable Length (LU)
3/4″
Coolant Supply Property (CSP)
External
Length Chip Flute (LCF)
3/4″
Point Angle (SIG)
135 Degrees
Overall Length (OAL)
2″
Flute Helix Angle (FHA)
straight
Flute Count (NOF)
2
Shank Type
Round
Family Description
Alternate Manufacture # 20403
• Hi-Roc® Solid Carbide Drills • 135° Point • Designed to drill hardened steel in the 42–65 Rockwell “C” range. • Produces chips without generating excessive heat. • Accurately sized holes are produced without annealing or softening the workpiece. • Reamer type finishes are easily produced. • Both a production drill and a salvage or reclaim tool. • Micrograin 10% cobalt grade.
