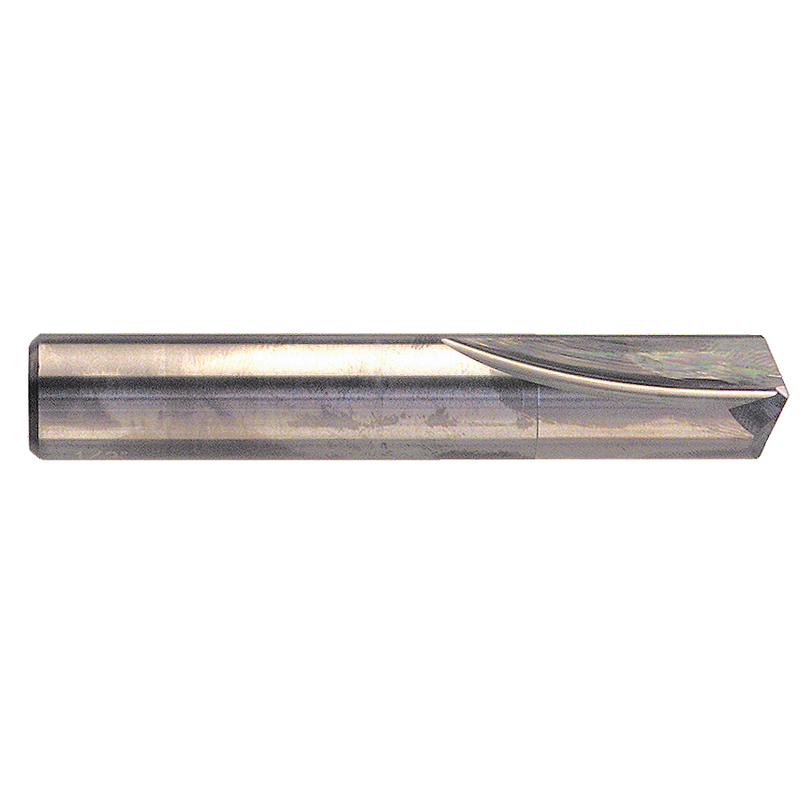

M A Ford AX3020451 1/4" Dia. x 1/4" Shank x 3/4" Flute Length x 2" OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill Fashion
$37.30Original price was: $37.30.$14.92Current price is: $14.92.
M A Ford AX3020451 1/4" Dia. x 1/4" Shank x 3/4" Flute Length x 2" OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Short Description
M A Ford 20025000 1/4″ Dia. x 1/4″ Shank x 3/4″ Flute Length x 2″ OAL, 3XD, 135°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Full Description
Drill Bit Size / Cutting Diameter (DC)
1/4″
Shape
Screw Machine
Drill Bit Size / Cutting Diameter (DC) – Inch
1/4″
Cutting Edge Material
Carbide
Decimal Equivalent
0.25″
Tool Type
Screw Machine
Length Group
3XD
Point Shape
Point
Coating
Uncoated
Measurement Type
Inch
Connection Diameter Machine Side (DCONMS)
1/4″
Usable Length (LU)
3/4″
Coolant Supply Property (CSP)
External
Length Chip Flute (LCF)
3/4″
Point Angle (SIG)
135 Degrees
Overall Length (OAL)
2″
Flute Helix Angle (FHA)
straight
Flute Count (NOF)
2
Shank Type
Round
Family Description
Alternate Manufacture # 20451
• Hi-Roc® Solid Carbide Drills • 135° Point • Designed to drill hardened steel in the 42–65 Rockwell “C” range. • Produces chips without generating excessive heat. • Accurately sized holes are produced without annealing or softening the workpiece. • Reamer type finishes are easily produced. • Both a production drill and a salvage or reclaim tool. • Micrograin 10% cobalt grade.
