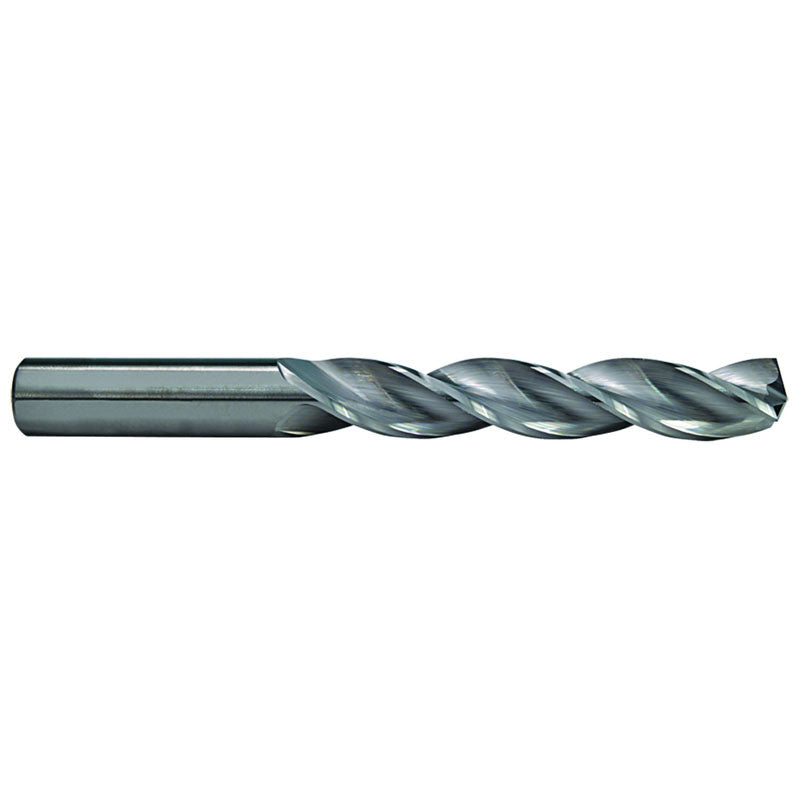

M A Ford AX3522909 5/32 Dia-2-1/2 OAL-Bright-CBD-Stnd High Perform Drill
Short Description
M A Ford 22915620 5/32″ Dia. x 5/32″ Shank x 1-3/8″ Flute Length x 2-1/2″ OAL, 5xD, 150°, Uncoated, 3 Flute, External Coolant, Round Solid Carbide Drill
Full Description
Drill Bit Size / Cutting Diameter (DC)
5/32″
Shank Type
Round
Drill Bit Size / Cutting Diameter (DC) – Inch
5/32″
Cutting Edge Material
Carbide
Decimal Equivalent
0.1563″
Tool Type
Solid Carbide Drills
Length Group
5xD
Point Shape
Point
Coating
Uncoated
Measurement Type
Inch
Connection Diameter Machine Side (DCONMS)
5/32″
Usable Length (LU)
1-3/8″
Coolant Supply Property (CSP)
External
Length Chip Flute (LCF)
1-3/8″
Point Angle (SIG)
150 Degrees
Overall Length (OAL)
2-1/2″
Flute Helix Angle (FHA)
30 Degrees
Flute Count (NOF)
3
Family Description
Alternate Manufacture # 22909
• Solid Carbide 3 Flute High Performance Drills • Solid Carbide (K20–40) 10% Micrograin Carbide 150° Point 30° Helix Series 229 America’s Best • Recommended for increased speeds and feeds when drilling aluminum, cast iron and other easy to machine materials. • Greater hole dimensional accuracy at higher production rates • Reduces drill deflection compared to HSS, Cobalt and othercarbide drills • 150° Point
