Sale!

M A Ford BG7001393 7/64 CARBIDE CHUCK REAMER Hot on Sale

Original price was: $27.25.Current price is: $10.90.

SKU: US-6727542800589 Categories: , Tag:

Description

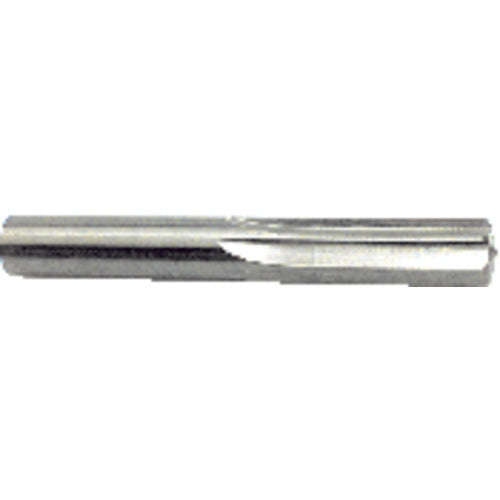

M A Ford BG7001393 7/64 CARBIDE CHUCK REAMER

Short Description

M A Ford 27210940 7/64 CARBIDE CHUCK REAMER

Full Description

Cutting Diameter (DC) 7/64″ Cutting Edge Material Carbide
Usable Length (LU) 5/8″ Shank Type Round
Flute Count (NOF) 4 Flute Type Straight
Overall Length (OAL) 2-1/4″ Length Chip Flute (LCF) 5/8″
Cutting Direction (HAND) Right Hand Measurement Type Inch
Flute Helix Angle (FHA) 0 Degrees Decimal Equivalent .1094

Family Description
Alternate Manufacture # 01393
• Solid Carbide Chucking Reamers • Solid carbide reamers can be used successfully in a broad range of ferrous metals. In hardened steel Rc 40 or greater, solid carbide reamers are the only realistic choice. Recommended for general purpose reaming in most materials. • Tolerances: 3/8″ and smaller +.0001 / +.0003 over 3/8″ +.0001 / +.0004 • Right hand cutting with straight flutes and a 45° lead cutting angle • Micrograin 10% cobalt C–2 grade. • Well suited for ferrous metals, and for many nonferrous and non-metallic materials. • Sizes up to .253 are 4 Flute Sizes over .253 are 6 Flute
