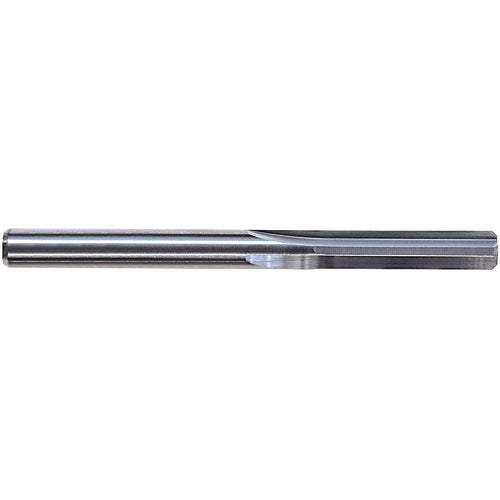

M A Ford BG7001701 13/64 Dia-Solid Carbide Chucking Reamer Alternate Manufacture # 01701
Short Description
M A Ford 27220310 13/64 Dia-Solid Carbide Chucking Reamer Alternate Manufacture # 01701
Full Description
Cutting Diameter (DC)
13/64″
Cutting Edge Material
Carbide
Usable Length (LU)
1″
Shank Type
Round
Flute Count (NOF)
4
Flute Type
Straight
Overall Length (OAL)
3″
Length Chip Flute (LCF)
1″
Cutting Direction (HAND)
Right Hand
Measurement Type
Inch
Flute Helix Angle (FHA)
0 Degrees
Decimal Equivalent
.2031
Family Description
Alternate Manufacture # 01701
• Solid Carbide Chucking Reamers • Solid carbide reamers can be used successfully in a broad range of ferrous metals. In hardened steel Rc 40 or greater, solid carbide reamers are the only realistic choice. Recommended for general purpose reaming in most materials. • Tolerances: 3/8″ and smaller +.0001 / +.0003 over 3/8″ +.0001 / +.0004 • Right hand cutting with straight flutes and a 45° lead cutting angle • Micrograin 10% cobalt C–2 grade. • Well suited for ferrous metals, and for many nonferrous and non-metallic materials. • Sizes up to .253 are 4 Flute Sizes over .253 are 6 Flute
