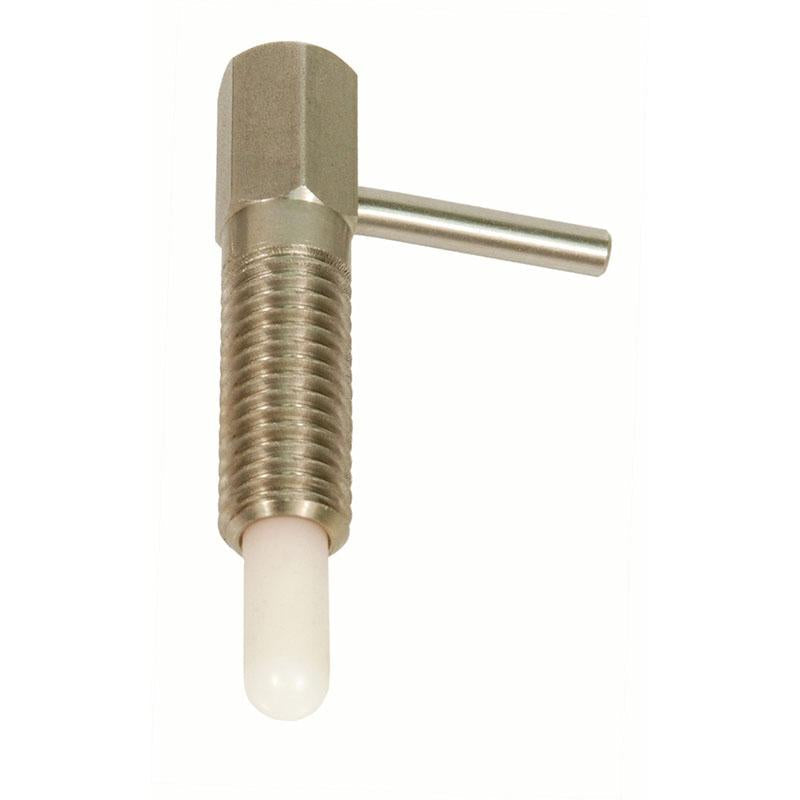

NORTHWESTERN TOOLS 33649 Hand Retractable Plungers – Long Reach – Standard – Locking – Radiused Delrin Nose – Steel, End Force: 0.5 Initial x 2.5 Full Supply

Original price was: $4.99.Current price is: $2.00.

SKU: US-6706581831885 Categories: , Tag:

Description

NORTHWESTERN TOOLS 33649 Hand Retractable Plungers – Long Reach – Standard – Locking – Radiused Delrin Nose – Steel, End Force: 0.5 Initial x 2.5 Full

Short Description

NORTHWESTERN TOOLS 33649 Hand Retractable Plungers – Long Reach – Standard – Locking – Radiused Delrin Nose – Steel, End Force: 0.5 Initial x 2.5 Full
Northwestern Part Number: 33649
Carr Lane equivalent: N/A

*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

NORTHWESTERN TOOLS 33649 Hand Retractable Plungers – Long Reach – Standard – Locking – Radiused Delrin Nose – Steel, End Force: 0.5 Initial x 2.5 Full

Hand Retractable Plungers – Long Reach – Standard – Locking – Radiused Delrin Nose – Steel, End Force: 0.5 Initial x 2.5 Full

Northwestern Part Number: 33649

Carr Lane equivalent: N/A

Product Information

Steel or Stainless Steel Long Reach, Standard Length, Locking Plungers with Radiused Delrin Nose

Steel parts are 12L14 material, zinc plated and heat treated.

All 90 degree handles are 303 stainless steel.

All stainless steel parts are 303 material.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32″ larger than the major diameter of the mating thread to prevent damaging the element.

Used in machining applications as positioners, loading pins, indexing devices.

Available with or without locking element.
Steel or Stainless Steel Long Reach, Standard Length, Locking Plungers with Radiused Delrin Nose
Steel
Part
No.		 Stainless
Steel
Part No.		 End Pressure
Pounds
Start		 End Pressure
Pounds
Full		 A B C D E F G H J Net Lbs.
Per 100
33649 33657 0.5 2.5 1/4-20 .156 3/8 5/8 1-1/4 1/4 5/8 3/32 1/2 1-1/2
33650 33658 0.75 3.0 5/16-18 .186 1/2 7/8 1-5/8 5/16 3/4 7/64 9/16 3
33651 33659 0.75 3.75 3/8-16 .250 9/16 1-1/16 2″ 3/8 15/16 9/64 11/16 5-1/4
33652 33660 1.0 5.0 1/2-13 .312 3/4 1-1/8 2-1/8 1/2 1-1/4 3/16 3/4 10-1/4
33653 33661 1.0 5.0 5/8-11 .375 1″ 1-3/4 3″ 5/8 1-5/16 3/16 1-1/16 22-1/4

**Please note, this item is nonrefundable.**
