NORTHWESTERN TOOLS 33702 Hand Retractable Plungers – Pull Ring – Short – Non-Locking Plungers – Steel, End Force: 0.50 Initial x 2.0 Full

Short Description

NORTHWESTERN TOOLS 33702 Hand Retractable Plungers – Pull Ring – Short – Non-Locking Plungers – Steel, End Force: 0.50 Initial x 2.0 Full
Northwestern Part Number: 33702
Carr Lane equivalent: CL-4N/ARHRP

*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

NORTHWESTERN TOOLS 33702 Hand Retractable Plungers – Pull Ring – Short – Non-Locking Plungers – Steel, End Force: 0.50 Initial x 2.0 Full

Hand Retractable Plungers – Pull Ring – Short – Non-Locking Plungers – Steel, End Force: 0.50 Initial x 2.0 Full

Northwestern Part Number: 33702

Carr Lane equivalent: CL-4N/ARHRP

Product Information

Steel or Stainless Steel Short Pull Ring Non Locking Plungers

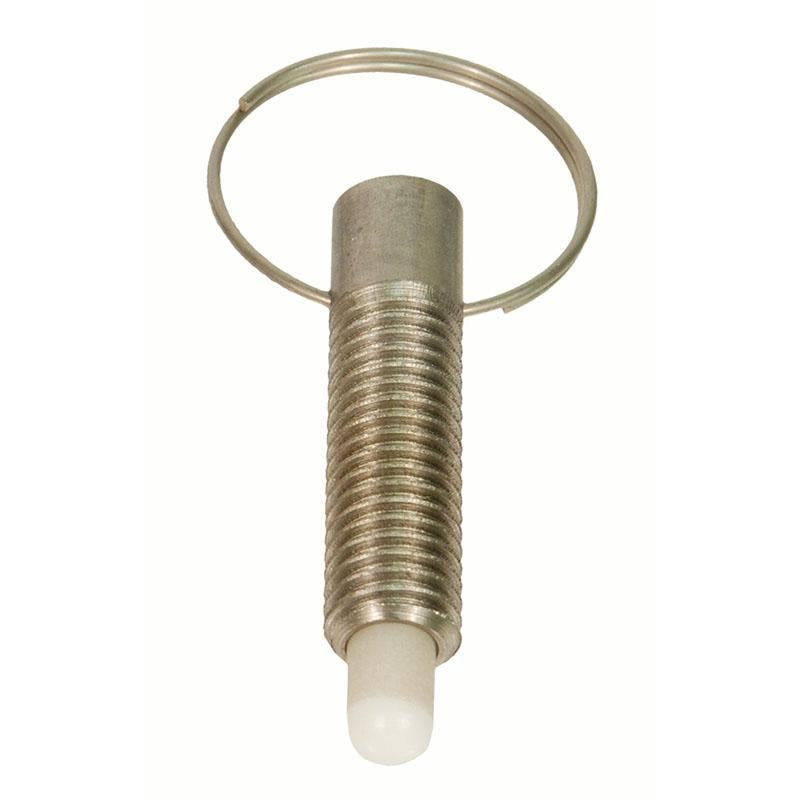

Designed to function where space is limited. Easy to grasp ring allows you to hold the plunger back while changing work piece.

Plunger nose has a chamfered end to assure easy alignment.

Steel parts are zinc plated 12L14 material.

Noses are 11L41 zinc plated material.

All stainless steel is 303 material.

End pressures are given in pounds. Full pressures are the force pounds needed to move the nose the distance shown in “C” column.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32″ larger than the major diameter of the mating thread to prevent damaging the element.

Used in machining applications as positioners, loading pins, indexing devices.

Available with or without locking element.
Steel or Stainless Steel Short Pull Ring Non Locking Plungers
Steel
Part
No.		 Stainless
Steel
Part No.		 End Pressure
Pounds
Start		 End Pressure
Pounds
Full		 A B C D E F G H Ring
O.D.		 Net Lbs.
Per 100
33702 33712 .50 2.0 1/4-20 7/16 3/16 .156 1/4 1/32 5/32 9/32 3/4 1
33703 33713 .75 2.75 5/16-18 17/32 1/4 .186 5/16 3/32 3/16 23/64 3/4 1.5
33704 33714 .75 3.0 3/8-16 5/8 9/32 .250 3/8 1/8 3/16 7/16 3/4 2
33706 33716 1.0 4.0 1/2-13 13/16 3/8 .312 1/2 5/32 1/4 9/16 1″ 4-1/4
33708 33718 1.25 5.0 5/8-11 1″ 7/16 .375 5/8 5/32 5/16 11/16 1″ 8
Phenolic Nose
Steel
Part
No.		 Stainless
Steel
Part No.		 End Pressure
Pounds
Start		 End Pressure
Pounds
Full		 A B C +.001
-.002
D		 E F G H Ring
O.D.		 Net Lbs.
Per 100
33722 33732 .50 2.0 1/4-20 7/16 3/16 .156 1/4 1/32 5/32 9/32 3/4 1
33724 33734 .75 3.0 3/8-16 5/8 9/32 .250 3/8 1/8 3/16 7/16 3/4 2
33726 33736 1.0 4.0 1/2-13 13/16 3/8 .312 1/2 5/32 1/4 9/16 1″ 4-1/4
33728 33738 1.25 5.0 5/8-11 1″ 7/16 .375 5/8 5/32 5/16 11/16 1″ 8
