OSG USA, Inc. TP111206000 #3-48 Dia-H2-2 FL-HSS-Bright-Plug Spiral Point Tap Online Hot Sale

Original price was: $11.29.Current price is: $4.52.

SKU: US-6985469886669 Categories: , Tag:

Description

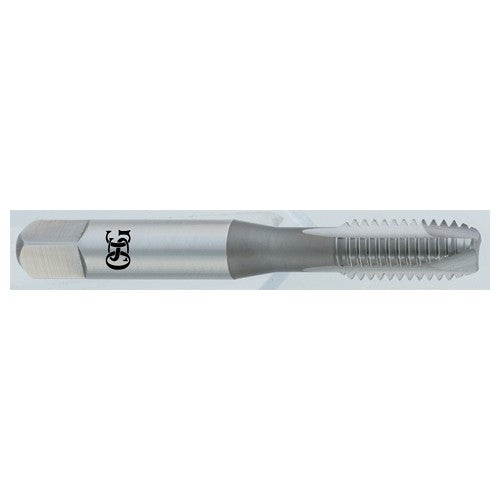

OSG USA, Inc. TP111206000 #3-48 Dia-H2-2 FL-HSS-Bright-Plug Spiral Point Tap

Short Description

OSG USA, Inc. TP111206000 #3-48 Dia-H2-2 FL-HSS-Bright-Plug Spiral Point Tap

Full Description

Thread Standard NC Cutting Edge Material HSS
Thread Size #3 – 48 Tool Type General Purpose Tap
Thread Diameter Size (TDZ) #3 Applicable Material Steel | Cast Iron | Aluminum / Non-Ferrous Materials
Threads per Inch (TPI) 48 Connection Diameter Machine Side (DCONMS) 0.141″
Thread Tolerance Class (TCTR) H2 Thread Cutting Part Length (THL) 1/2″
Usable Length (LU) 0.579″ End Shape Spiral Point
Overall Length (OAL) 1-13/16″ Style Plug
Chamfer 4P-4.5P Cutting Direction (HAND) Right Hand
Coating Bright Measurement Type Wire Gauge
Flute Count (NOF) 2 Series/List # 105

• Machine screw sizes• Spiral point – plug style – 2 flute ground thread – high speed steel
