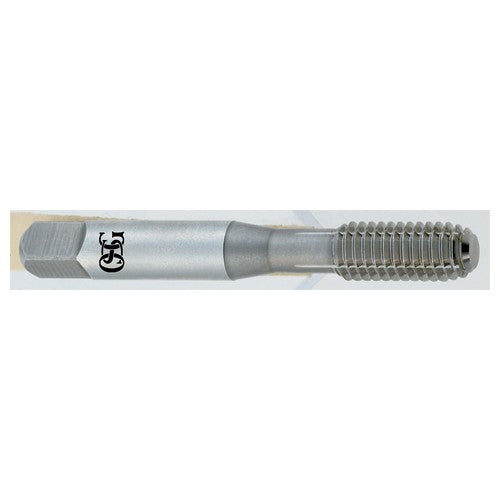

OSG USA, Inc. TP192865600 10-32 Dia-2B-0 FL-HSS Bright-Bottoming Thread Forming Tap
Short Description
OSG USA, Inc. TP192865600 10-32 Dia-2B-0 FL-HSS Bright-Bottoming Thread Forming Tap
Full Description
Tool Type
High Performance Tap
Coolant Supply Property (CSP)
External
Thread Diameter Size (TDZ)
#10
Threads per Inch (TPI)
32
Overall Length (OAL)
2-3/8″
Chamfer
1.5P-2P
Thread Cutting Part Length (THL)
7/8″
Measurement Type
Wire Gage
Connection Diameter Machine Side (DCONMS)
0.194″
Style
Bottoming
Flute Count (NOF)
0
End Shape
Chamfer
Thread Standard
UNF
Cutting Edge Material
HSS
Applicable Material
Steel | Aluminum / Non-Ferrous Materials
Series/List #
286
Coating
Bright
Thread Size
#10 – 32
• Seven Nu-Roll Taps• Bottoming Style• Forming taps are manufactured with lead correction allowing uniform material formation on both sides of the flank, resulting in extended tap life. These taps are designed for stainless steels, mild steels, high silicone aluminum and aluminum alloys. Best performance Aluminum materials
