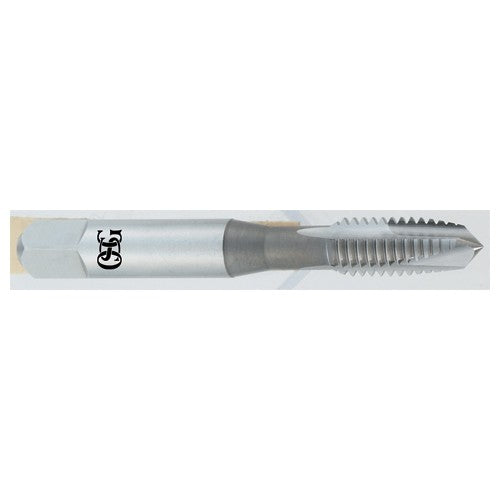

OSG USA, Inc. TP202886400 4-48 Dia-2B-2 FL-HSS-Bright-Plug Spiral Point Tap
Short Description
OSG USA, Inc. TP202886400 4-48 Dia-2B-2 FL-HSS-Bright-Plug Spiral Point Tap
Full Description
Thread Standard
NF
Cutting Edge Material
HSS
Thread Size
#4 – 48
Tool Type
High Performance Tap
Thread Diameter Size (TDZ)
#4
Applicable Material
Steel | Aluminum / Non-Ferrous Materials
Threads per Inch (TPI)
48
Connection Diameter Machine Side (DCONMS)
0.14″
Thread Tolerance Class (TCTR)
2B Thread Limit
Thread Cutting Part Length (THL)
9/16″
Usable Length (LU)
0.559″
End Shape
Spiral Point
Overall Length (OAL)
1-7/8″
Style
Plug
Chamfer
4P-4.5P
Measurement Type
Wire Gauge
Coating
Bright
Series/List #
288
Flute Count (NOF)
2
• Seven Taps• Spiral Point Plug Taps• Bright Finish• Designed for tapping aluminum, mild steels and medium carbon steels• Short thread geometry for class 2B & 3B fit• Results in highest fast speed tapping & max tool life
