OSG USA, Inc. TP202886800 12-24 2B 2FL PLUG SP PT Supply

Original price was: $7.23.Current price is: $2.89.

SKU: US-6990171996365 Categories: , Tag:

Description

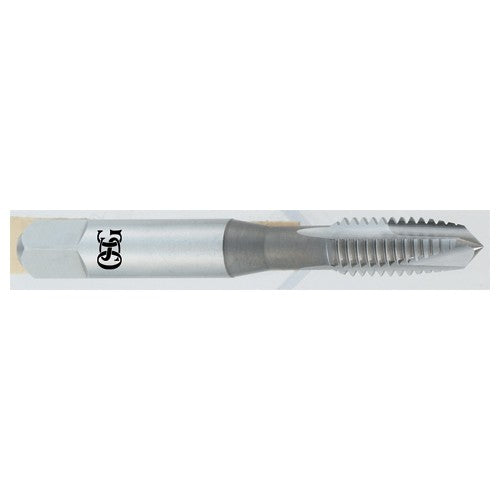

OSG USA, Inc. TP202886800 12-24 2B 2FL PLUG SP PT

Short Description

OSG USA, Inc. TP202886800 12-24 2B 2FL PLUG SP PT

Full Description

Thread Standard NC Cutting Edge Material HSS
Thread Size #12 – 24 Tool Type High Performance Tap
Thread Diameter Size (TDZ) #12 Applicable Material Steel | Aluminum / Non-Ferrous Materials
Threads per Inch (TPI) 24 Connection Diameter Machine Side (DCONMS) 0.22″
Thread Tolerance Class (TCTR) 2B Thread Limit Thread Cutting Part Length (THL) 15/16″
Usable Length (LU) 0.937″ End Shape Spiral Point
Overall Length (OAL) 2-3/8″ Style Plug
Chamfer 4P-4.5P Measurement Type Wire Gauge
Coating Bright Series/List # 288
Flute Count (NOF) 2

• Seven Taps• Spiral Point Plug Taps• Bright Finish• Designed for tapping aluminum, mild steels and medium carbon steels• Short thread geometry for class 2B & 3B fit• Results in highest fast speed tapping & max tool life
