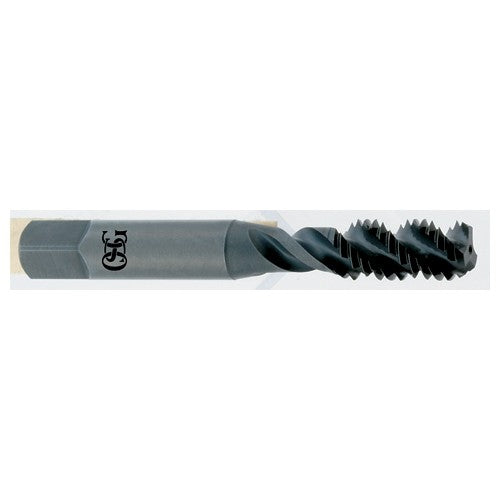

OSG USA, Inc. TP212986900 7/16-14 Dia-2B-3 FL-HSS-Bright-Bottoming Spiral Flute Tap
Short Description
OSG USA, Inc. TP212986900 7/16-14 Dia-2B-3 FL-HSS-Bright-Bottoming Spiral Flute Tap
Full Description
Thread Diameter Size (TDZ)
7/16″
Tool Type
High Performance Tap
Threads per Inch (TPI)
14
Chamfer
1.5P-2P
Thread Standard
NC
Coating
Bright
Overall Length (OAL)
3-5/32″
Flute Type
Spiral
Thread Cutting Part Length (THL)
1-7/16″
End Shape
Chamfer
Usable Length (LU)
1-7/16″
Style
Bottoming
Connection Diameter Machine Side (DCONMS)
0.323″
Measurement Type
Inch
Flute Count (NOF)
3
ToolTypeName
Spiral Flute Taps
Cutting Edge Material
HSS
Series/List #
298
Thread Tolerance Class (TCTR)
2B
• Seven Taps• Spiral Fluted Bottoming Taps• Bright Finish• Designed for tapping aluminum, mild steels and medium carbon steels• Short thread geometry• Highest speed tapping without chip packing
