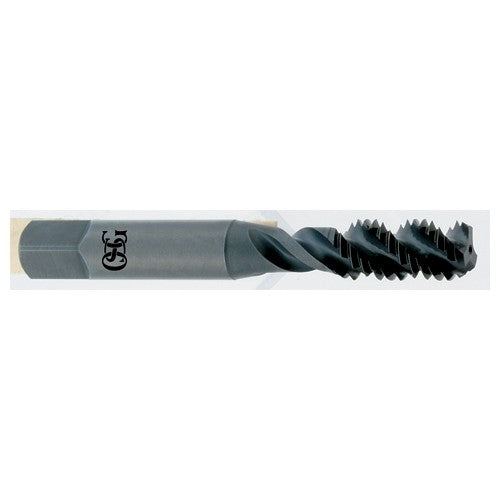

OSG USA, Inc. TP212988500 M10 1.50 Dia-6H-3 FL-HSS-Bright-Bottoming Spiral Flute Tap
Short Description
OSG USA, Inc. TP212988500 M10 1.50 Dia-6H-3 FL-HSS-Bright-Bottoming Spiral Flute Tap
Full Description
Thread Diameter Size (TDZ)
M10
Thread Tolerance Class (TCTR)
6H
Thread Pitch (TP)
1.5 mm
Tool Type
High Performance Tap
Thread Standard
Metric
Chamfer
1.5P-2P
Overall Length (OAL)
2-15/16″
Coating
Bright
Thread Cutting Part Length (THL)
1-1/4″
Flute Type
Spiral
Usable Length (LU)
1-1/4″
End Shape
Chamfer
Connection Diameter Machine Side (DCONMS)
0.381″
Style
Bottoming
Flute Count (NOF)
3
Measurement Type
Metric
Cutting Edge Material
HSS
ToolTypeName
Spiral Flute Taps
• Seven Taps• Spiral Fluted Bottoming Taps• Bright Finish• Designed for tapping aluminum, mild steels and medium carbon steels• Short thread geometry• Highest speed tapping without chip packing
