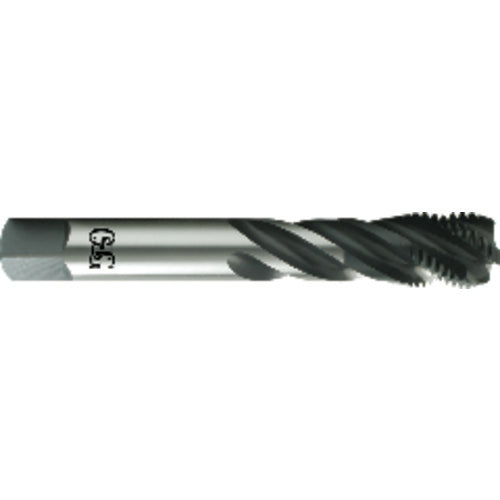

OSG USA, Inc. TP221311700501 M24 3.00 Dia-D9-HSSE-Steam Oxide-Spiral Flute Tap
Short Description
OSG USA, Inc. TP221311700501 M24 3.00 Dia-D9-HSSE-Steam Oxide-Spiral Flute Tap
Full Description
Thread Diameter Size (TDZ)
M24
Tool Type
High Performance Tap
Thread Pitch (TP)
3 mm
Chamfer
2.5P-3P
Thread Standard
Metric
Coating
Black Oxide
Overall Length (OAL)
200 mm
Flute Type
Spiral
Thread Cutting Part Length (THL)
2-7/32″
End Shape
Chamfer
Usable Length (LU)
24 mm
Style
Spiral Flute
Connection Diameter Machine Side (DCONMS)
19.3 mm
Coolant Supply Property (CSP)
External
Flute Count (NOF)
5
Measurement Type
Metric
Cutting Edge Material
HSSCo
ToolTypeName
Thread Forming Taps
Thread Tolerance Class (TCTR)
D9
• Premium Vanadium High Speed Steel• For Vertical Application• DIN Overall Length• Steam Oxide Coating• Modified Bottom Chamfer• Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC
