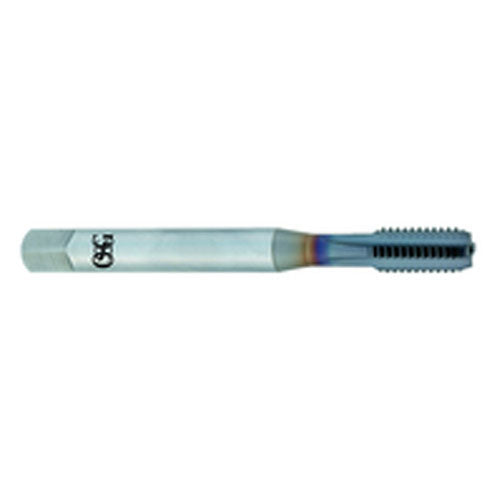

OSG USA, Inc. TP291105700708 M14 1.50 Dia-D7-5 FL- VC10 TiCN-Bottoming Straight Flute Tap
Short Description
OSG USA, Inc. TP291105700708 M14 1.50 Dia-D7-5 FL- VC10 TiCN-Bottoming Straight Flute Tap
Full Description
Thread Diameter Size (TDZ)
M14
Tool Type
High Performance Tap
Thread Pitch (TP)
1.5 mm
Chamfer
1.5P-2P
Thread Standard
Metric
Coating
TiCN
Overall Length (OAL)
3-19/32″
Flute Type
Straight
Thread Cutting Part Length (THL)
1-21/32″
End Shape
Chamfer
Usable Length (LU)
50 mm
Style
Bottoming
Connection Diameter Machine Side (DCONMS)
10.89 mm
Coolant Supply Property (CSP)
Coolant Thru
Flute Count (NOF)
5
Measurement Type
Metric
Applicable Material
Cast Iron | Aluminum / Non-Ferrous Materials
Series/List #
11057
Cutting Edge Material
VC10
Thread Size
M14 x 1.5
Thread Tolerance Class (TCTR)
D7
Remarks
• EXOTAP DC Oil Bottom Taps• Coolant thru • TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
