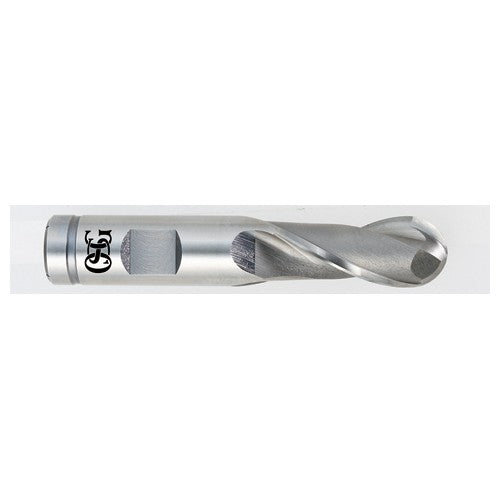

OSG USA, Inc. TP365210300 1/4 Dia. ?3/8 Shank ?5/8 DOC ?2-7/16 OAL, HSSCo Bright, 2 Flute, Round, External , Ballnose End Mill
Short Description
OSG USA, Inc. TP365210300 1/4 Dia. נ3/8 Shank נ5/8 DOC נ2-7/16 OAL, HSSCo Bright, 2 Flute, Round, External , Ballnose End Mill
Full Description
Cutting Diameter (DC)
1/4″
Corner Radius (RE)
1/8″
Connection Diameter Machine Side (DCONMS)
3/8″
Tool Type
Single-End
Depth of Cut Maximum (APMX)
5/8″
Length Group
Standard
Overall Length (OAL)
2-7/16″
End Shape
Ball Nose
Cutting Edge Material
HSSCo
Coolant Supply Property (CSP)
External
Coating
Bright
Style
Center Cutting
Flute Count (NOF)
2
Decimal Equivalent
0.25″
Shank Type
Round
Measurement Type
Inch
Usable Length (LU)
5/8″
Series/List #
521
Remarks
• M-42 Cobalt 2-Flute, Ball End• Single End Mills • Center Cutting• M–42 8% Cobalt Steel for the tougher cutting assignments on high-strength, high-temperature steels and exotic materials or extended production runs.
